Custom Distributions for Decorated Graphons

This tutorial demonstrates how to use custom distribution types with decorated graphons. While Graphons.jl works seamlessly with Distributions.jl, you can implement your own distribution types for specialized applications.

We'll cover:

  • The minimal interface required for custom distributions
  • Implementing a custom categorical distribution
  • Using custom distributions in decorated graphons
  • A practical example with network edge weights

See Custom Distribution Types for more details on implementing custom distributions.

Setup

using Graphons
using Random
using CairoMakie
using Statistics
using StatsAPI

Random.seed!(42)
TaskLocalRNG()

Understanding the Distribution Interface

For a type to work as a distribution in DecoratedGraphon, it must implement:

  1. rand(rng::AbstractRNG, d::YourDistribution) - Sample from the distribution
  2. eltype(d::YourDistribution) - Return the type of sampled values

That's it! These two methods are sufficient for the graphon to sample edges.

Example 1: Custom Categorical Distribution

Let's implement a simple categorical distribution that samples from a discrete set of values with specified probabilities.

struct CustomCategorical{T}
    values::Vector{T}
    probabilities::Vector{Float64}
    cumulative::Vector{Float64}  # Precomputed for efficiency

    function CustomCategorical(values::Vector{T}, probs::Vector{Float64}) where {T}
        @assert length(values)==length(probs) "Values and probabilities must have same length"
        @assert sum(probs)≈1.0 "Probabilities must sum to 1"
        @assert all(p >= 0 for p in probs) "Probabilities must be non-negative"

        # Precompute cumulative probabilities for faster sampling
        cumulative = cumsum(probs)
        new{T}(values, probs, cumulative)
    end
end

Implement the required sampling method

function Base.rand(rng::AbstractRNG, d::CustomCategorical)
    u = rand(rng)
    for (i, cum_prob) in enumerate(d.cumulative)
        if u <= cum_prob
            return d.values[i]
        end
    end
    return d.values[end]  # Fallback for numerical precision
end

Implement the required eltype method

Base.eltype(::CustomCategorical{T}) where {T} = T

Add StatsAPI.params method for automatic parameter extraction and plotting

function StatsAPI.params(d::CustomCategorical)
    return d.probabilities
end

Optional: nice display

function Base.show(io::IO, d::CustomCategorical)
    print(io, "CustomCategorical(")
    for (i, (v, p)) in enumerate(zip(d.values, d.probabilities))
        print(io, v, "=>", round(p, digits = 2))
        if i < length(d.values)
            print(io, ", ")
        end
    end
    print(io, ")")
end

Test our custom distribution:

dist = CustomCategorical([1, 2, 3], [0.5, 0.3, 0.2])
samples = [rand(dist) for _ in 1:1000]
println("Distribution: ", dist)
println("Sample mean: ", mean(samples), " (expected: ",
    sum(dist.values .* dist.probabilities), ")")
println("Sample frequencies: ", [count(==(i), samples) for i in 1:3])
println("Parameters: ", StatsAPI.params(dist))
Distribution: CustomCategorical(1=>0.5, 2=>0.3, 3=>0.2)
Sample mean: 1.695 (expected: 1.7000000000000002)
Sample frequencies: [496, 313, 191]
Parameters: [0.5, 0.3, 0.2]

Example 2: Position-Dependent Edge Types

Now let's create a decorated graphon where the edge type depends on node positions. We'll model a network with three types of edges: weak (1), medium (2), strong (3).

function W_edge_strength(x, y)
    distance = abs(x - y)

    if distance < 0.3
        # Close nodes: mostly strong connections
        return CustomCategorical([1, 2, 3], [0.1, 0.2, 0.7])
    elseif distance < 0.6
        # Medium distance: balanced
        return CustomCategorical([1, 2, 3], [0.3, 0.4, 0.3])
    else
        # Far apart: mostly weak connections
        return CustomCategorical([1, 2, 3], [0.6, 0.3, 0.1])
    end
end

graphon_strength = DecoratedGraphon(W_edge_strength)
DecoratedGraphon{Int64, Matrix{Int64}, typeof(Main.W_edge_strength), Main.CustomCategorical{Int64}}(Main.W_edge_strength)

Sample a network:

n = 100
A_strength = sample_graph(graphon_strength, n)

println("Edge type distribution:")
println("  Weak (1):   ", count(==(1), A_strength), " (",
    round(count(==(1), A_strength) / n^2 * 100, digits = 1), "%)")
println("  Medium (2): ", count(==(2), A_strength), " (",
    round(count(==(2), A_strength) / n^2 * 100, digits = 1), "%)")
println("  Strong (3): ", count(==(3), A_strength), " (",
    round(count(==(3), A_strength) / n^2 * 100, digits = 1), "%)")
Edge type distribution:
  Weak (1):   2482 (24.8%)
  Medium (2): 2732 (27.3%)
  Strong (3): 4686 (46.9%)

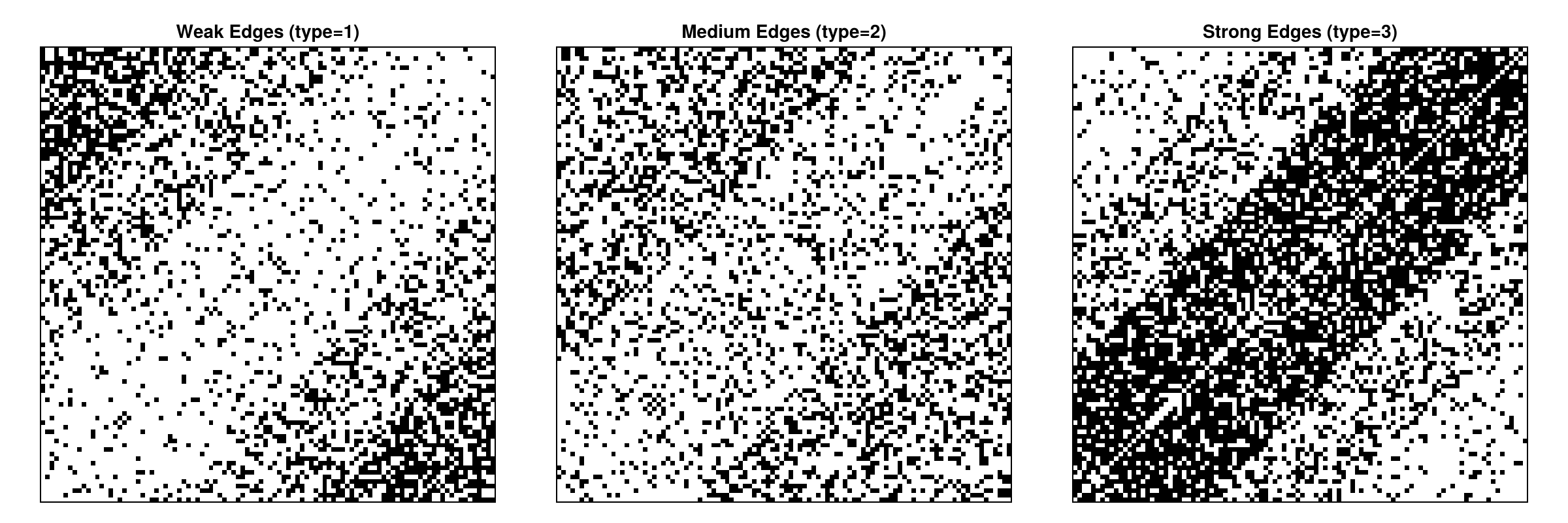

Visualizing Edge Strength Patterns

fig = Figure(size = (1200, 400))

# Show the three edge types separately
for (i, (edge_type, label)) in enumerate(zip([1, 2, 3], ["Weak", "Medium", "Strong"]))
    ax = Axis(fig[1, i],
        title = "$label Edges (type=$edge_type)",
        aspect = 1)
    hidedecorations!(ax)

    A_binary = zeros(Bool, n, n)
    A_binary[A_strength .== edge_type] .= true
    heatmap!(ax, A_binary, colormap = :binary)
end

fig
Example block output

Notice how strong edges (type 3) cluster along the diagonal (similar positions), while weak edges (type 1) are more common far from the diagonal!

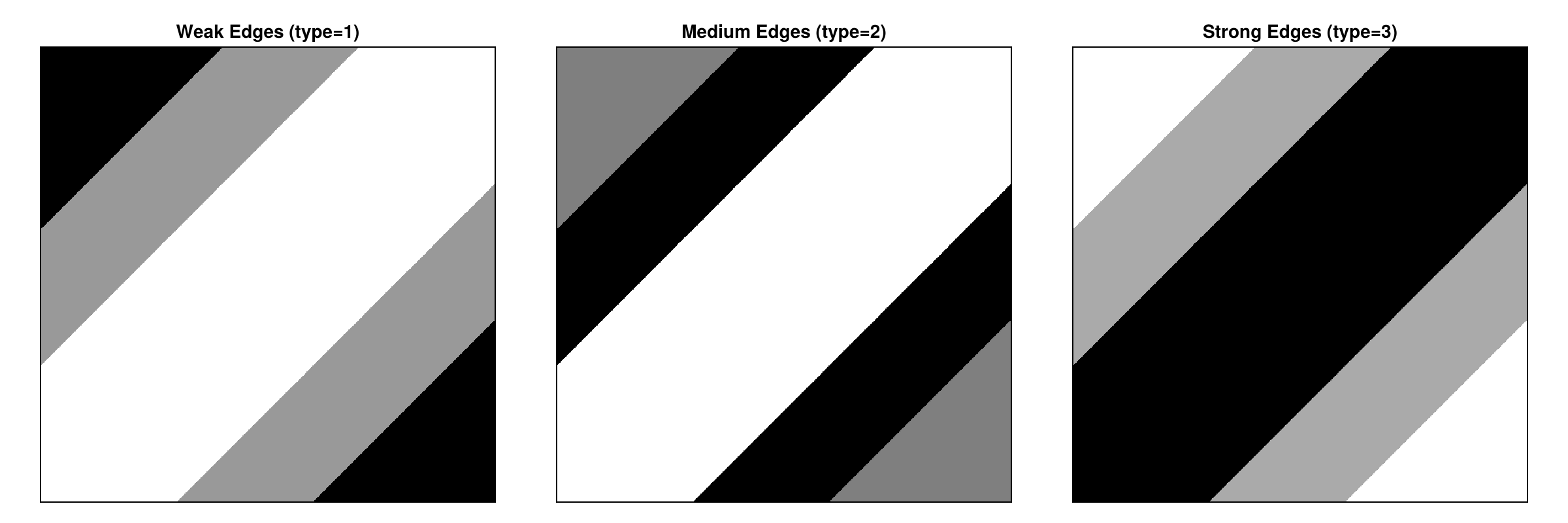

We can compare the above plots with the underlying probabilities from the graphon:

fig = Figure(size = (1200, 400))

# Show the three edge types separately
for (i, (edge_type, label)) in enumerate(zip([1, 2, 3], ["Weak", "Medium", "Strong"]))
    ax = Axis(fig[1, i],
        title = "$label Edges (type=$edge_type)",
        aspect = 1)
    hidedecorations!(ax)

    heatmap!(ax, graphon_strength, k = i, res = 0.001, colormap = :binary)
end

fig
Example block output

Example 3: Custom Weighted Distribution

Let's create a custom distribution for continuous edge weights that aren't available in Distributions.jl. We'll implement a truncated power-law distribution.

struct TruncatedPowerLaw
    α::Float64      # Power-law exponent
    x_min::Float64  # Minimum value
    x_max::Float64  # Maximum value

    function TruncatedPowerLaw(α, x_min, x_max)
        @assert α>0 "Exponent must be positive"
        @assert x_max>x_min>0 "Must have x_max > x_min > 0"
        new(α, x_min, x_max)
    end
end

function Base.rand(rng::AbstractRNG, d::TruncatedPowerLaw)
    # Inverse transform sampling for power law
    u = rand(rng)
    if d.α ≈ 1.0
        return d.x_min * exp(u * log(d.x_max / d.x_min))
    else
        a = 1 - d.α
        return (d.x_min^a + u * (d.x_max^a - d.x_min^a))^(1 / a)
    end
end

Base.eltype(::TruncatedPowerLaw) = Float64

function Base.show(io::IO, d::TruncatedPowerLaw)
    print(io, "TruncatedPowerLaw(α=", d.α, ", range=[", d.x_min, ", ", d.x_max, "])")
end

function StatsAPI.params(d::TruncatedPowerLaw)
    return (d.α, d.x_min, d.x_max)
end

Create a graphon with power-law weighted edges:

function W_powerlaw(x, y)
    # Exponent depends on positions
    α = 1.5 + 2.0 * min(x, y)  # α between 1.5 and 3.5
    return TruncatedPowerLaw(α, 0.1, 10.0)
end

graphon_powerlaw = DecoratedGraphon(W_powerlaw)
A_powerlaw = sample_graph(graphon_powerlaw, 100)

println("Power-law weighted network:")
println("  Mean weight: ", mean(A_powerlaw))
println("  Median weight: ", median(A_powerlaw))
println("  Weight range: [", minimum(A_powerlaw), ", ", maximum(A_powerlaw), "]")
Power-law weighted network:
  Mean weight: 0.4804420867802672
  Median weight: 0.18428313874517033
  Weight range: [0.0, 9.91230113691524]

Visualize the weighted network:

fig = Figure(size = (900, 400))

ax1 = Axis(fig[1, 1],
    title = "Edge Weights (log scale)",
    aspect = 1)
hidedecorations!(ax1)
heatmap!(ax1, log10.(A_powerlaw .+ 0.01), colormap = :viridis)

ax2 = Axis(fig[1, 2],
    title = "Weight Distribution",
    xlabel = "Edge Weight",
    ylabel = "Frequency")
hist!(ax2, vec(A_powerlaw), bins = 50, color = (:blue, 0.5))

fig
Example block output

and compare to the underlying graphon

fig = Figure(size = (450, 400))
ax1 = Axis(fig[1, 1],
    title = "α",
    aspect = 1)
hidedecorations!(ax1)
heatmap!(ax1, graphon_powerlaw, colormap = :viridis)

fig
Example block output

Example 4: Multi-Value Edge Attributes

We can also create distributions that return multiple attributes per edge. For efficiency, we use StaticArrays.SVector:

using StaticArrays

struct MultiAttributeEdge
    base_prob::Float64
end

function Base.rand(rng::AbstractRNG, d::MultiAttributeEdge)
    # Return a vector of [weight, confidence, timestamp]
    if rand(rng) < d.base_prob
        weight = rand(rng) * 10.0
        confidence = rand(rng)
        timestamp = rand(rng, 1:100)
        return SVector(weight, confidence, Float64(timestamp))
    else
        return SVector(0.0, 0.0, 0.0)  # No edge
    end
end

Base.eltype(::MultiAttributeEdge) = SVector{3, Float64}

function Base.show(io::IO, d::MultiAttributeEdge)
    print(io, "MultiAttributeEdge(p=", d.base_prob, ")")
end

Create a graphon with multi-attribute edges:

function W_multiattr(x, y)
    prob = x * y * 0.5
    return MultiAttributeEdge(prob)
end

graphon_multi = DecoratedGraphon(W_multiattr)
A_multi = sample_graph(graphon_multi, 50)

println("Multi-attribute network shape: ", size(A_multi))
println("Edge attribute vector type: ", typeof(A_multi[1, 1]))
Multi-attribute network shape: (50, 50)
Edge attribute vector type: StaticArraysCore.SVector{3, Float64}

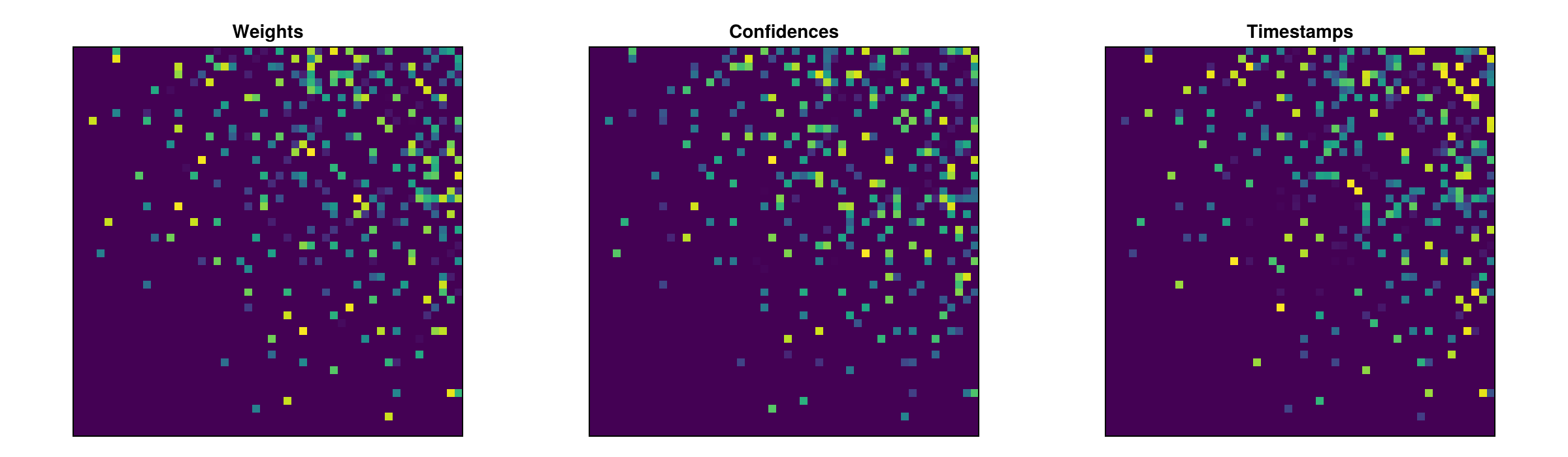

Extract individual attributes:

weights = [a[1] for a in A_multi]
confidences = [a[2] for a in A_multi]
timestamps = [a[3] for a in A_multi]

fig = Figure(size = (1200, 350))

ax1 = Axis(fig[1, 1], title = "Weights", aspect = 1)
hidedecorations!(ax1)
heatmap!(ax1, weights, colormap = :viridis)

ax2 = Axis(fig[1, 2], title = "Confidences", aspect = 1)
hidedecorations!(ax2)
heatmap!(ax2, confidences, colormap = :viridis)

ax3 = Axis(fig[1, 3], title = "Timestamps", aspect = 1)
hidedecorations!(ax3)
heatmap!(ax3, timestamps, colormap = :viridis)

fig
Example block output

Key Takeaways

  • Minimal interface: Only rand(rng, d) and eltype(d) are required
  • Flexibility: Can implement any sampling logic you need
  • Performance: Pre-compute what you can (like cumulative probabilities)
  • Type stability: Use concrete types and SVector for multi-valued returns
  • Integration: Works seamlessly with all Graphons.jl functionality

When to Use Custom Distributions

Consider implementing custom distributions when:

  • You need a distribution not available in Distributions.jl
  • You want specialized sampling logic (e.g., rejection sampling)
  • You need very high performance for a specific distribution
  • You're working with complex multi-attribute edges
  • You want to integrate with external libraries or data sources

Next Steps

  • For standard distributions, use Distributions.jl (it's faster and well-tested)
  • For complex sampling logic, consider making your type a subtype of Distributions.Sampleable
  • Profile your custom distributions to ensure good performance
  • See the Distributions.jl documentation for more advanced features
